Molding process

The molding process of automotive interior parts mainly includes injection molding, blow molding, extrusion molding, press molding, thermoforming, etc.

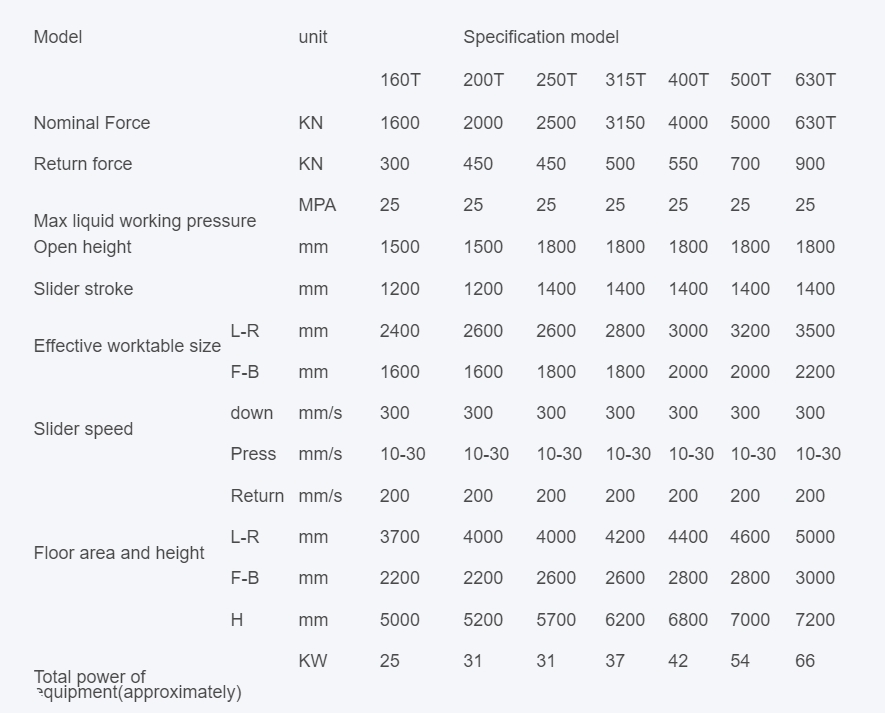

Technical parameter
Special specifications can be designed and manufactured separately according to customer needs


Model

unit


Specification model

160T

200T

250T

315T

400T

500T

630T

Nominal Force

KN

1600

2000

2500

3150

4000

5000

630T

Return force

KN

300

450

450

500

550

700

900



Max liquid working pressure

MPA

25

25

25

25

25

25

25

Open height

mm

1500

1500

1800

1800

1800

1800

1800

Slider stroke

mm

1200

1200

1400

1400

1400

1400

1400



Effective worktable size

L-R

mm

2400

2600

2600

2800

3000

3200

3500

F-B

mm

1600

1600

1800

1800

2000

2000

2200



Slider speed

down

mm/s

300

300

300

300

300

300

300

Press

mm/s

10-30

10-30

10-30

10-30

10-30

10-30

10-30

Return

mm/s

200

200

200

200

200

200

200



Floor area and height

L-R

mm

3700

4000

4000

4200

4400

4600

5000

F-B

mm

2200

2200

2600

2600

2800

2800

3000

H

mm

5000

5200

5700

6200

6800

7000

7200



Total power of equipment(approximately)

KW

25

31

31

37

42

54

66

Performance characteristics
01

Compared with manual production, the molding process can greatly improve production efficiency and reduce production costs.

02

The molding process is used to ensure the accuracy and dimensional consistency of automotive interior parts, thereby improving product quality.

03

Automotive interior parts of various shapes and structures can be produced, with better plasticity and design freedom.

End Product
