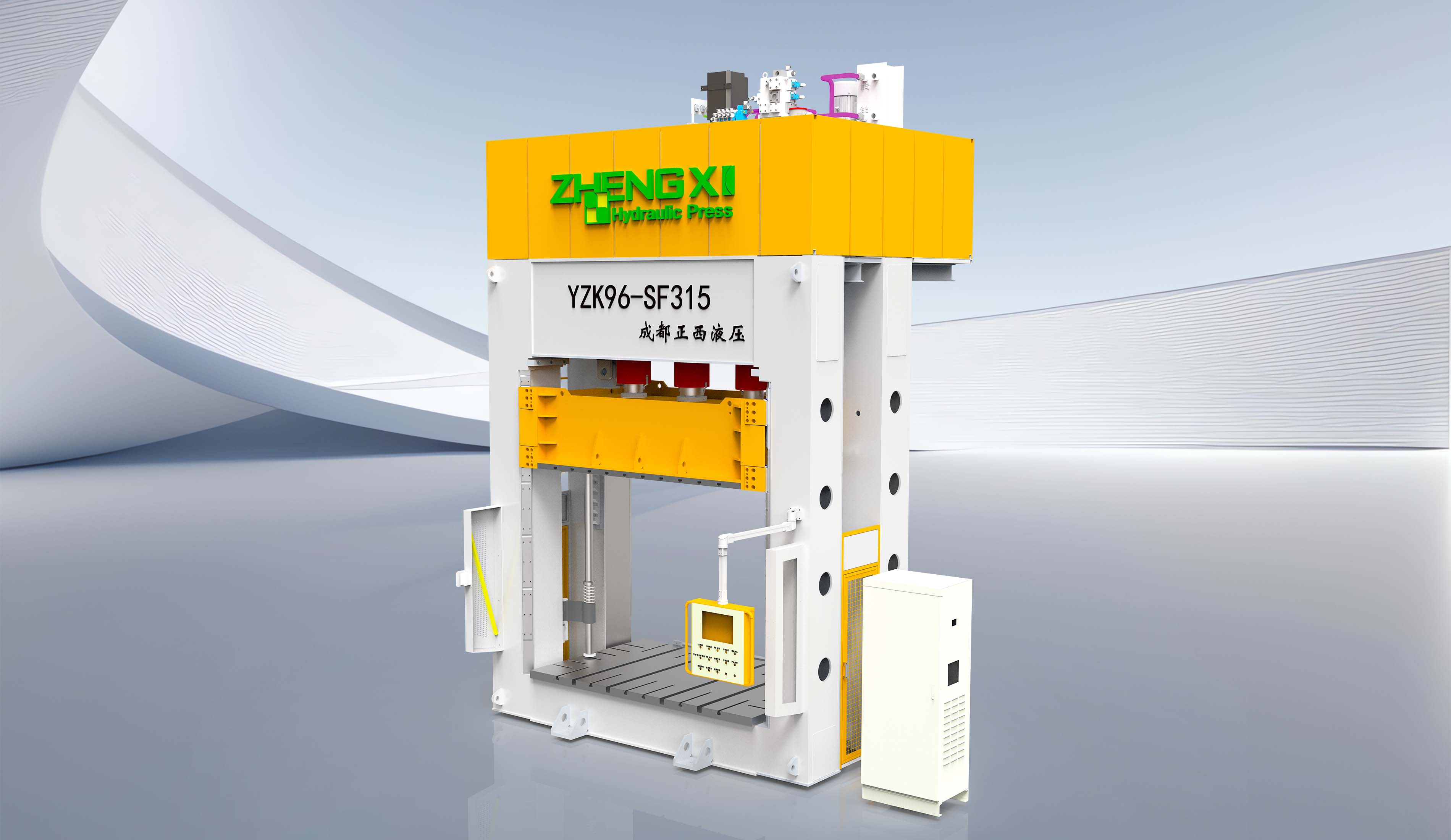

Foaming process

It can be mainly used for interior panel side impact buffers, ceiling linings, seat cushions, backrests, headrests, sun visors, interior door panel skin linings, etc.

Technical parameter

Special specifications can be designed and manufactured separately according to customer needs


Model		unit		Specification model
Model		unit	160T	200T	250T	315T	400T	500T	630T
Nominal Force		KN	1600	2000	2500	3150	4000	5000	630T
Return force		KN	300	450	450	500	550	700	900
Max liquid working pressure		MPA	25	25	25	25	25	25	25
Open height		mm	1500	1500	1800	1800	1800	1800	1800
Slider stroke		mm	1200	1200	1400	1400	1400	1400	1400
Effective worktable size	L-R	mm	2400	2600	2600	2800	3000	3200	3500
Effective worktable size	F-B	mm	1600	1600	1800	1800	2000	2000	2200
Slider speed	down	mm/s	300	300	300	300	300	300	300
	Press	mm/s	10-30	10-30	10-30	10-30	10-30	10-30	10-30
	Return	mm/s	200	200	200	200	200	200	200
Floor area and height	L-R	mm	3700	4000	4000	4200	4400	4600	5000
	F-B	mm	2200	2200	2600	2600	2800	2800	3000
	H	mm	5000	5200	5700	6200	6800	7000	7200
Total power of equipment(approximately)		KW	25	31	31	37	42	54	66

Performance characteristics

The foaming process is a process that evenly fills gas into plastic materials.

Generally, it can be used for the molding of rigid foam, semi-rigid foam, and soft foam.

End Product
