Technical parameter

Special specifications can be designed and manufactured separately according to customer needs

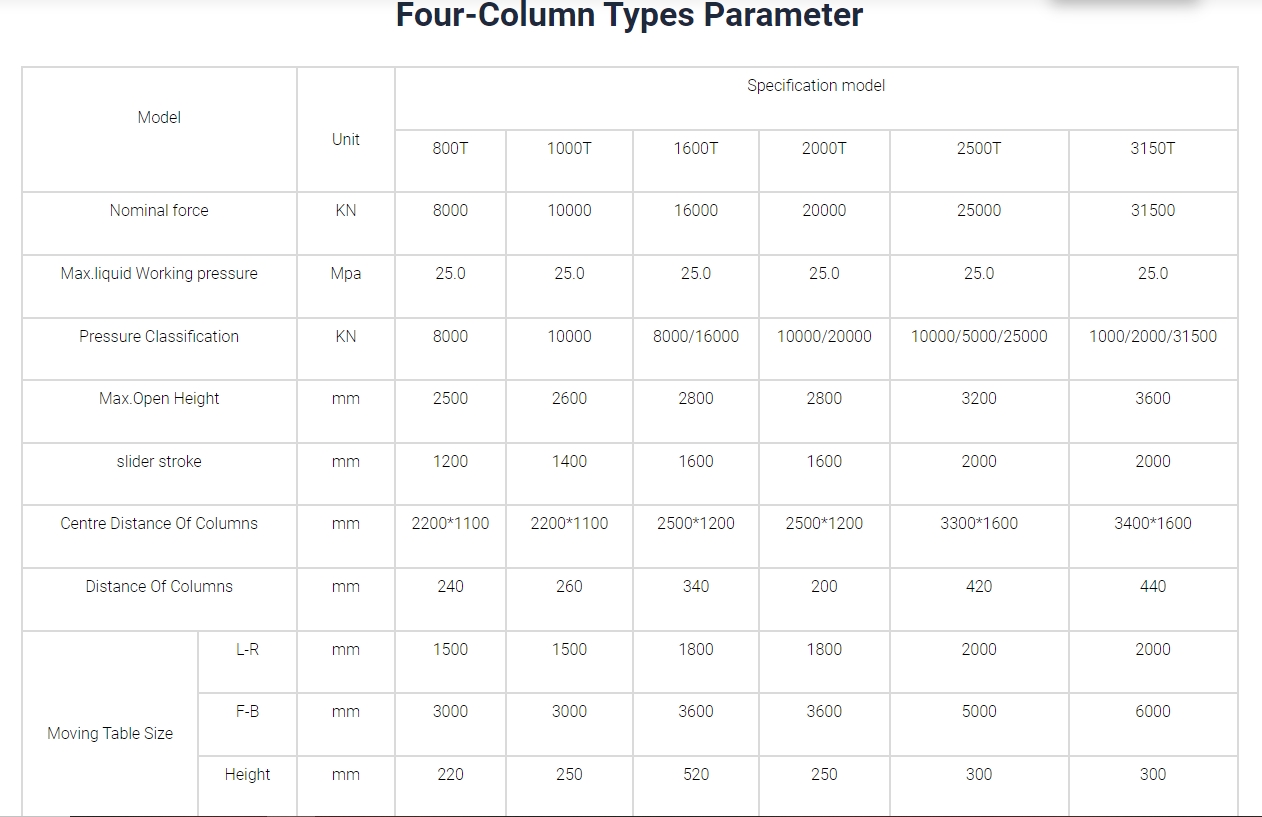

Model модель		Unit	Specification model
Model модель		Unit	800T	1000T	1600T	2000T	2500T	3150T
Nominal force		KN	8000	10000	16000	20000	25000	31500
Max.liquid Working pressure		Mpa	25.0	25.0	25.0	25.0	25.0	25.0
Pressure Classification		KN	8000	10000	8000/16000	10000/20000	10000/5000/25000	1000/2000/31500
Max.Open Height		mm	2500	2600	2800	2800	3200	3600
slider stroke		mm	1200	1400	1600	1600	2000	2000
Centre Distance Of Columns		mm	2200*1100	2200*1100	2500*1200	2500*1200	3300*1600	3400*1600
Distance Of Columns		mm	240	260	340	200	420	440
Moving Table Size Размер	L-R	mm	1500	1500	1800	1800	2000	2000
	F-B	mm	3000	3000	3600	3600	5000	6000
	Height	mm	220	250	520	250	300	300
Moving Table Procedural Place		mm	3	3	3	3	3	3
Foring Eccentricity		mm	100*60	100*60	140*70	140*70	150*100	200*120
Slider speed	Down	mm/s	400	400	400	400	400	400
	Pressing	mm/s	60	60	120/60	120/60	140/100/60	140/100/60
	Return	mm/s	250-400	250-400	250-400	250-400	250-400	250-400
Moving table speed		mm/s	200	250	200	200	200	200
Times of quick-forging		once/min	50-60	50-60	50-60	50-60	50-60	50-60
Main motor power		KW	440	380	850	1000	1350	1650

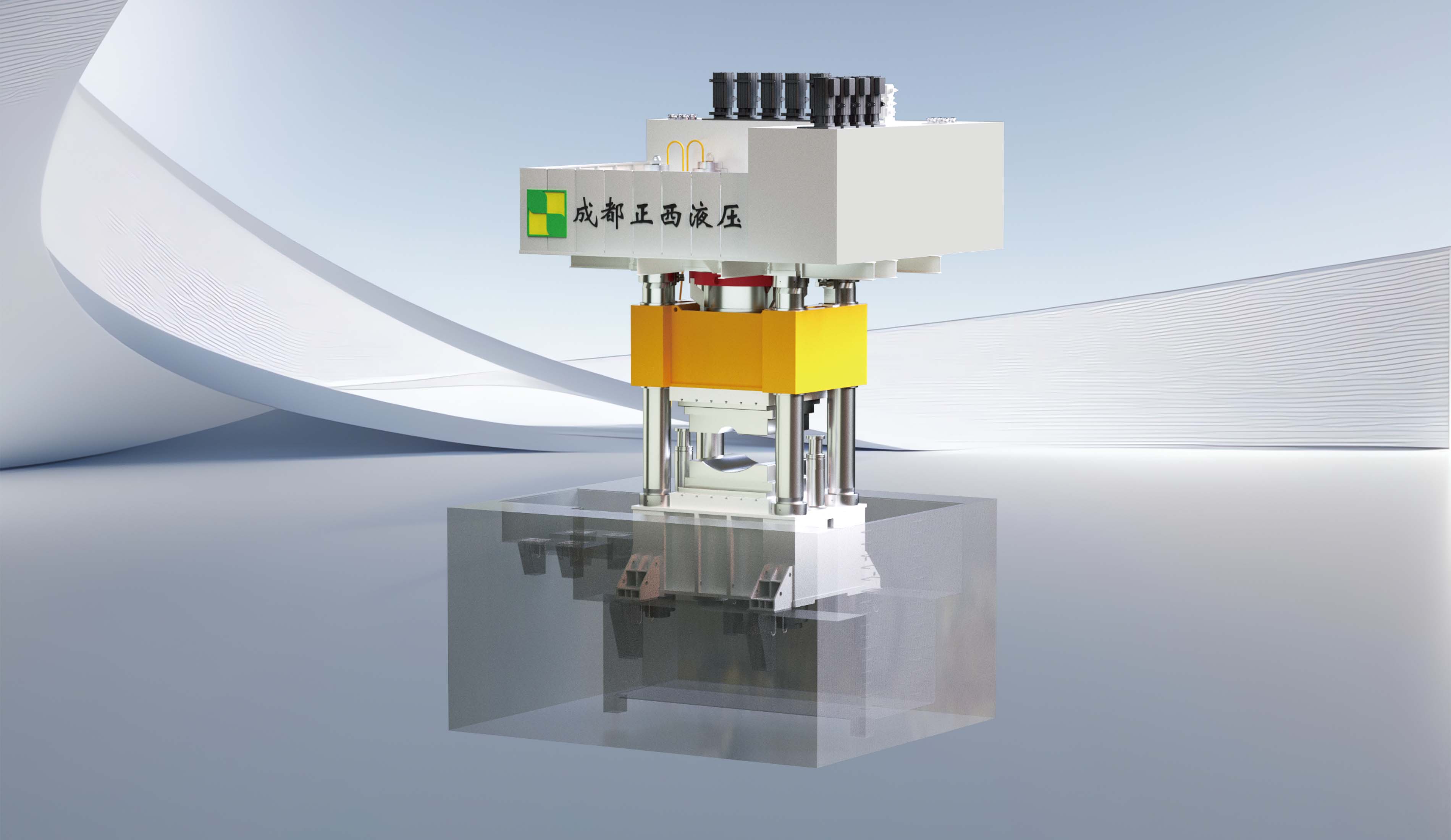

Yz-11 die forging hydraulic press
