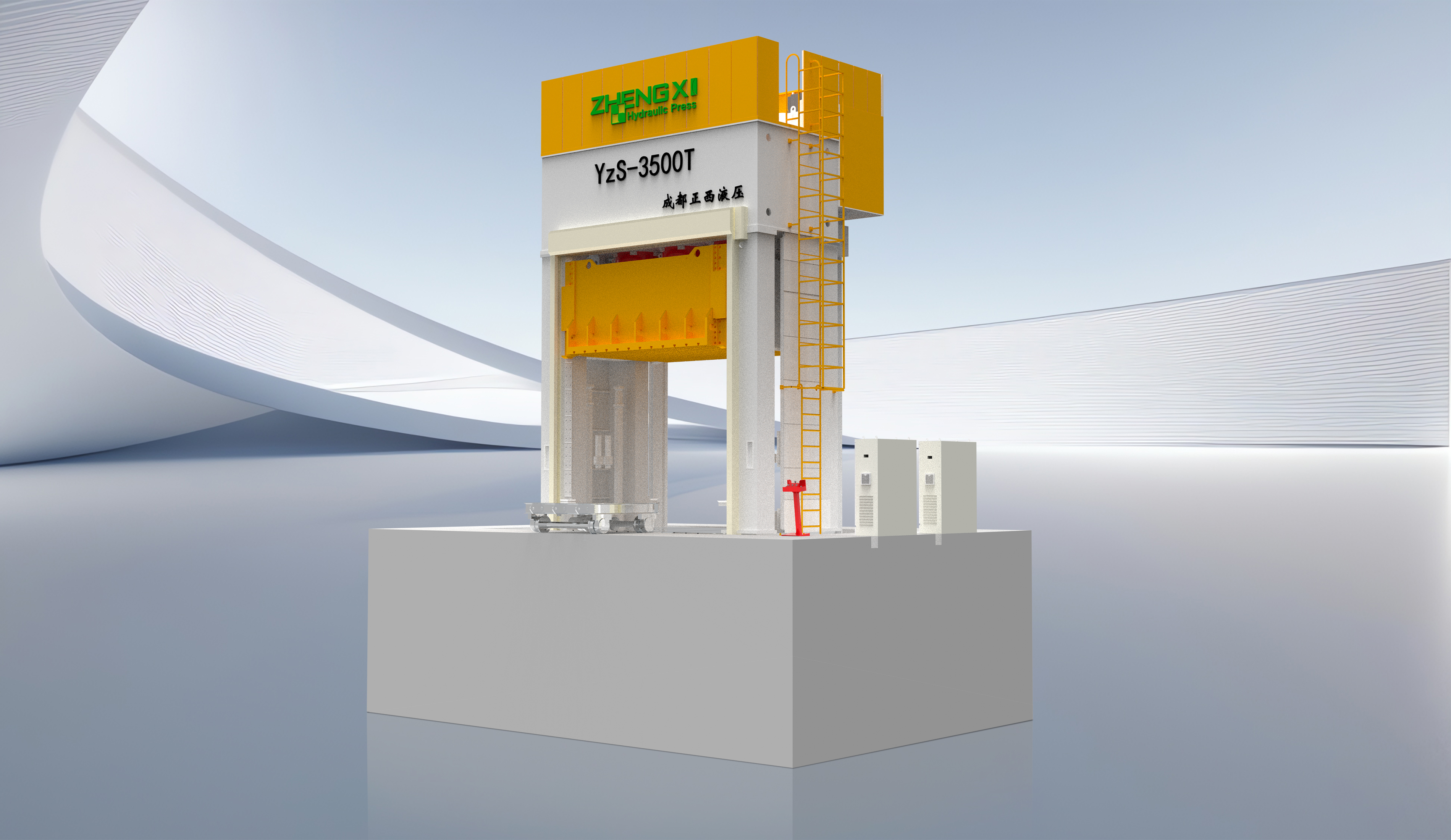

SMC composite material molding hydraulic press

1. The SMC composite material molding hydraulic press is mainly suitable for molding SMC materials. It is recommended to use a frame structure for high-precision products.

2. The machine is used in industries such as automobiles (bumpers, bottom guards, etc.), aviation, rail transit (railway handles, high-speed train interiors), and industries such as home furnishing, electric power, sanitary ware, and environmental protection.

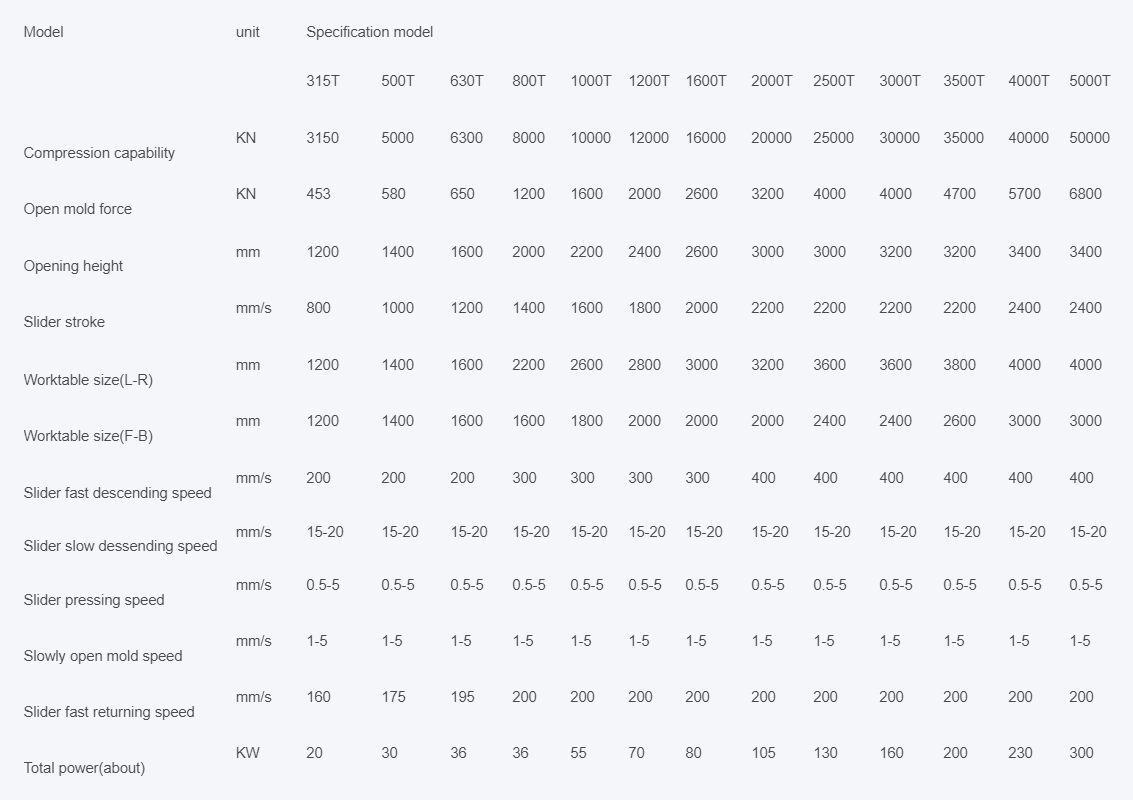

Technical parameter

Special specifications can be designed and manufactured separately according to customer needs


Model	unit	Specification model
Model	unit	315T	500T	630T	800T	1000T	1200T	1600T	2000T	2500T	3000T	3500T	4000T	5000T
Compression capability	KN	3150	5000	6300	8000	10000	12000	16000	20000	25000	30000	35000	40000	50000
Open mold force	KN	453	580	650	1200	1600	2000	2600	3200	4000	4000	4700	5700	6800
Opening height	mm	1200	1400	1600	2000	2200	2400	2600	3000	3000	3200	3200	3400	3400
Slider stroke	mm/s	800	1000	1200	1400	1600	1800	2000	2200	2200	2200	2200	2400	2400
Worktable size(L-R)	mm	1200	1400	1600	2200	2600	2800	3000	3200	3600	3600	3800	4000	4000
Worktable size(F-B)	mm	1200	1400	1600	1600	1800	2000	2000	2000	2400	2400	2600	3000	3000
Slider fast descending speed	mm/s	200	200	200	300	300	300	300	400	400	400	400	400	400
Slider slow dessending speed	mm/s	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20
Slider pressing speed	mm/s	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5
Slowly open mold speed	mm/s	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5
Slider fast returning speed	mm/s	160	175	195	200	200	200	200	200	200	200	200	200	200
Total power(about)	KW	20	30	36	36	55	70	80	105	130	160	200	230	300
