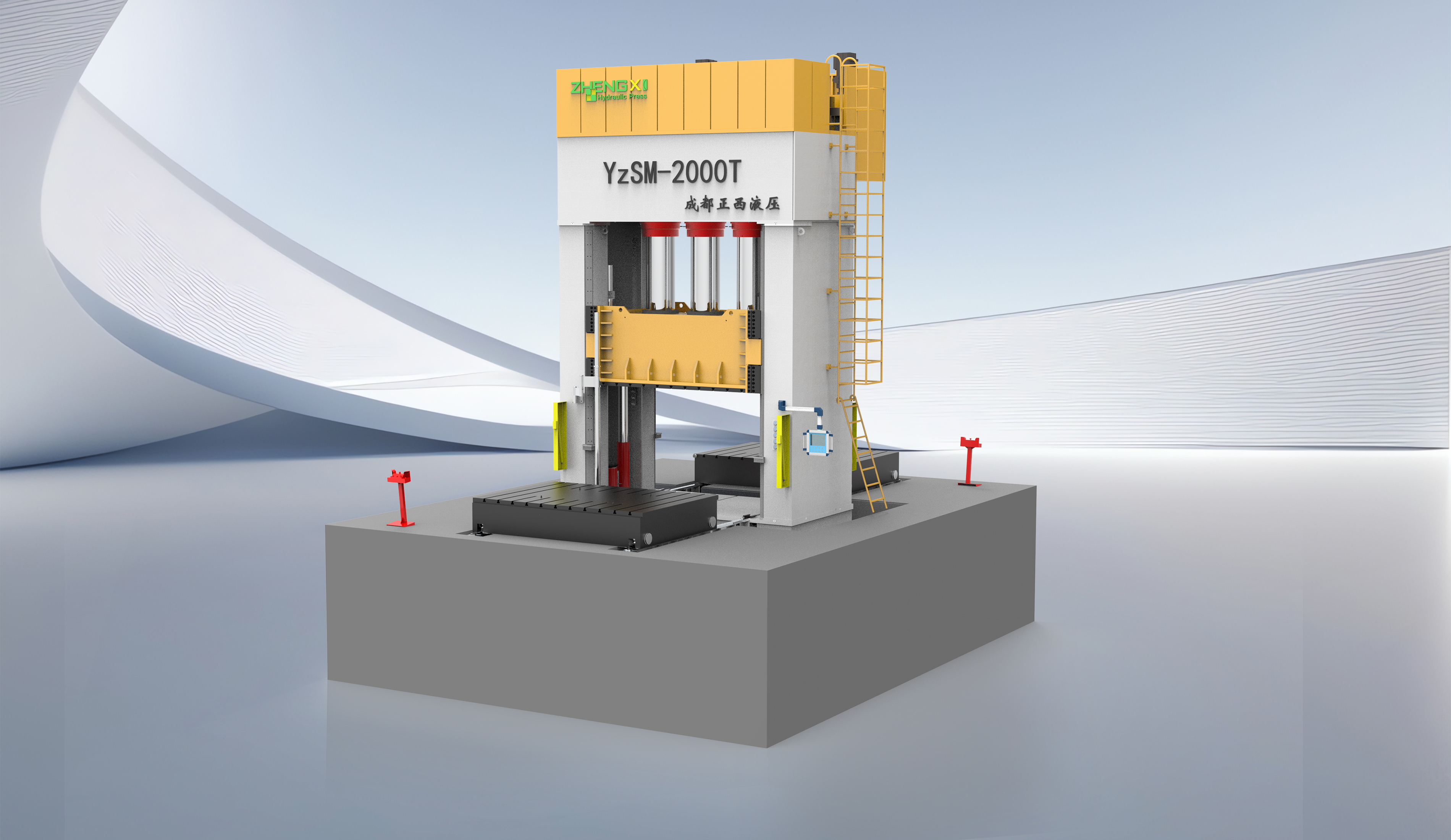

PCM composite material molding hydraulic press

1. The PCM molding hydraulic press is mainly suitable for the molding of carbon fiber prepreg.

2. The machine is widely used in automobiles (bumpers, bottom guards, battery cases), aerospace, electric power, energy, and other industries.

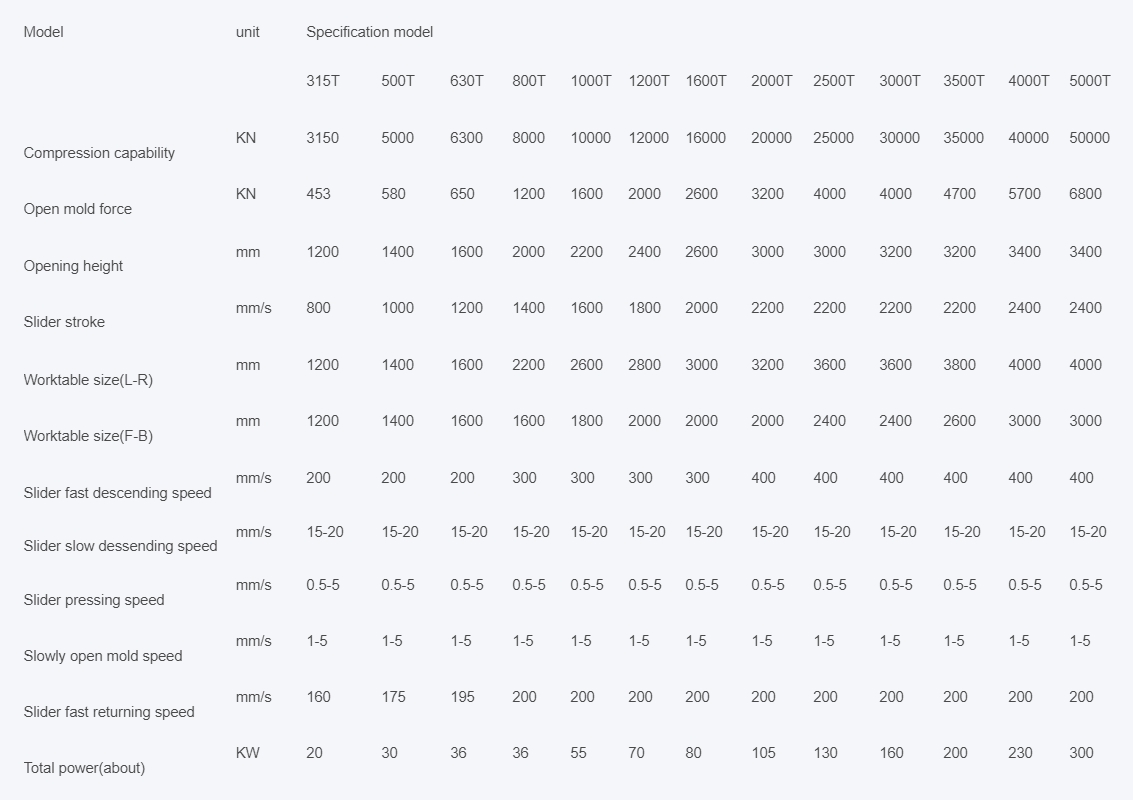

Technical parameter

Special specifications can be designed and manufactured separately according to customer needs


Model	unit	Specification model
Model	unit	315T	500T	630T	800T	1000T	1200T	1600T	2000T	2500T	3000T	3500T	4000T	5000T
Compression capability	KN	3150	5000	6300	8000	10000	12000	16000	20000	25000	30000	35000	40000	50000
Open mold force	KN	453	580	650	1200	1600	2000	2600	3200	4000	4000	4700	5700	6800
Opening height	mm	1200	1400	1600	2000	2200	2400	2600	3000	3000	3200	3200	3400	3400
Slider stroke	mm/s	800	1000	1200	1400	1600	1800	2000	2200	2200	2200	2200	2400	2400
Worktable size(L-R)	mm	1200	1400	1600	2200	2600	2800	3000	3200	3600	3600	3800	4000	4000
Worktable size(F-B)	mm	1200	1400	1600	1600	1800	2000	2000	2000	2400	2400	2600	3000	3000
Slider fast descending speed	mm/s	200	200	200	300	300	300	300	400	400	400	400	400	400
Slider slow dessending speed	mm/s	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20
Slider pressing speed	mm/s	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5
Slowly open mold speed	mm/s	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5
Slider fast returning speed	mm/s	160	175	195	200	200	200	200	200	200	200	200	200	200
Total power(about)	KW	20	30	36	36	55	70	80	105	130	160	200	230	300

Performance characteristics

01

The finite element optimization design of the main engine structure and the four-column structure have good rigidity and high precision.

02

Use the liquid as the medium to transmit energy, using an imported low-noise plunger oil pump.

03

Cartridge valve integrated system, reliable action, high cleanliness, low leakage.

04

Through the selection of the operation panel, two molding processes of fixed stroke and fixed pressure can be realized.

05

The working pressure and stroke can be adjusted within the specified range according to process needs.
